Winston Plywood 13 kV Feeder Improvements/Regulators

Atwell & Gent provided full planning, design, procurement, and construction administration services required to construct a new 13 kV double circuit between the Vance Street 161/13 kV Substation and the new Winston Plywood & Veneer Plant. Atwell & Gent was responsible for the construction administration of the project, including project coordination and scheduling, field inspections, and final acceptance.

Project Details:

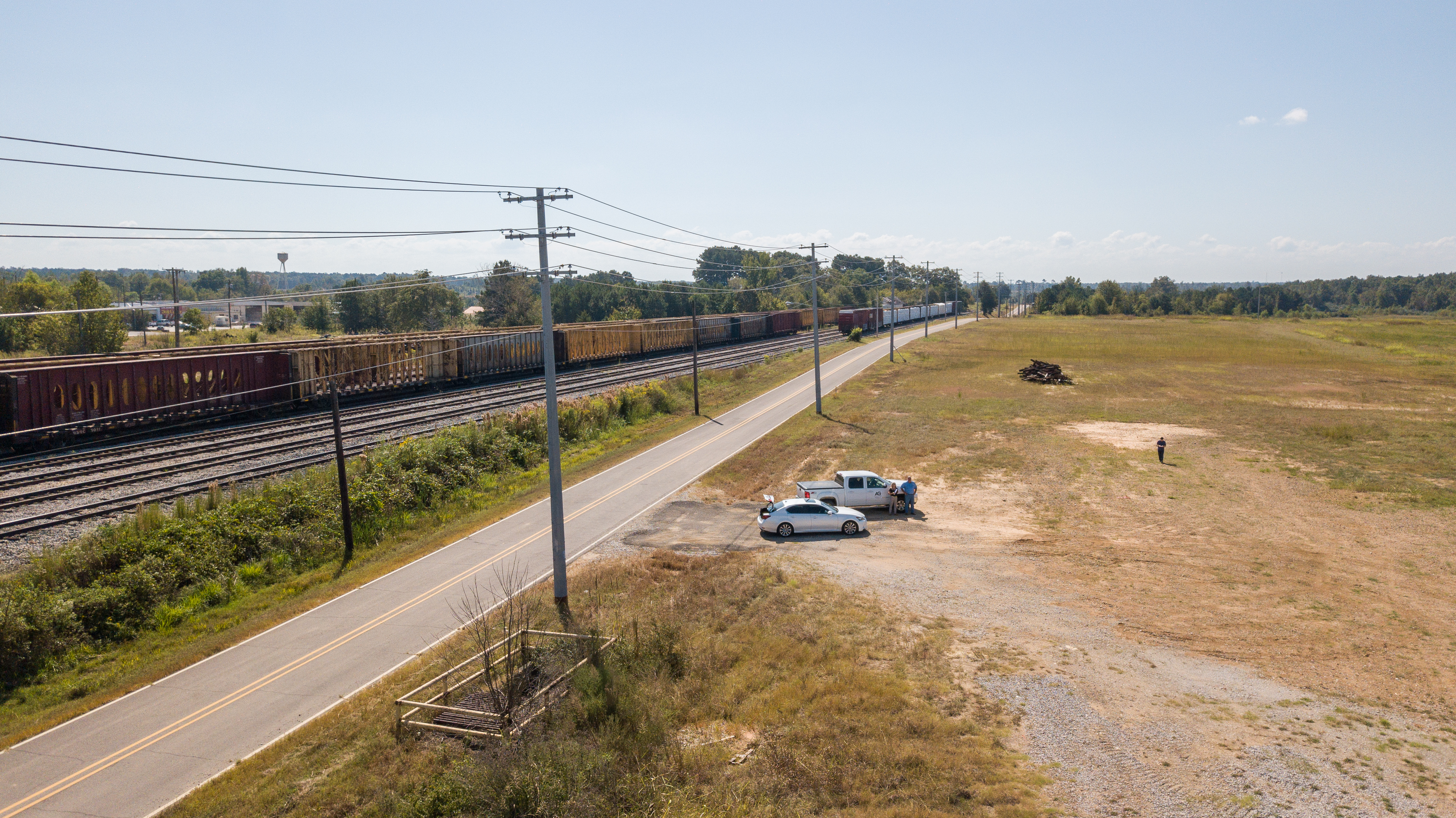

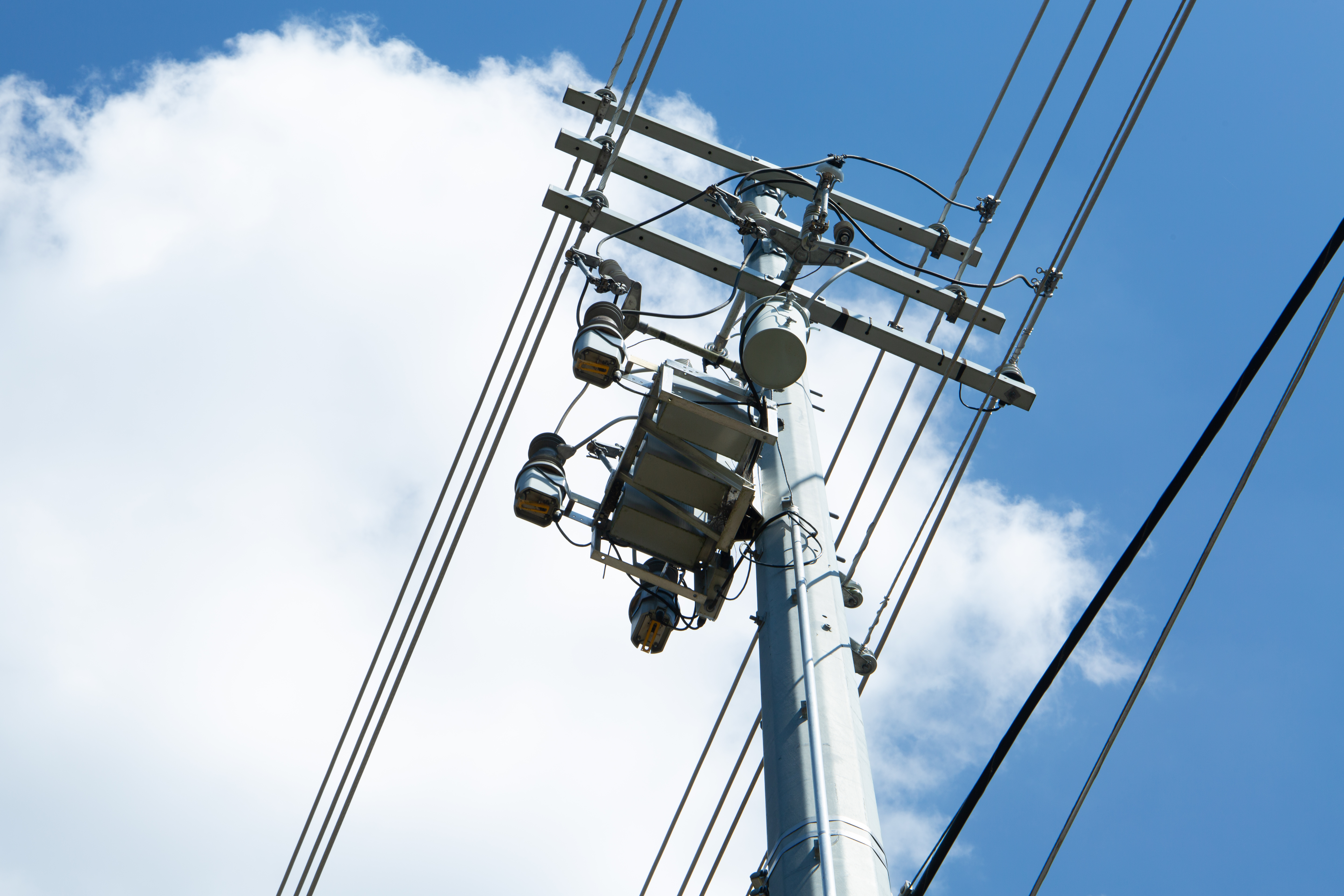

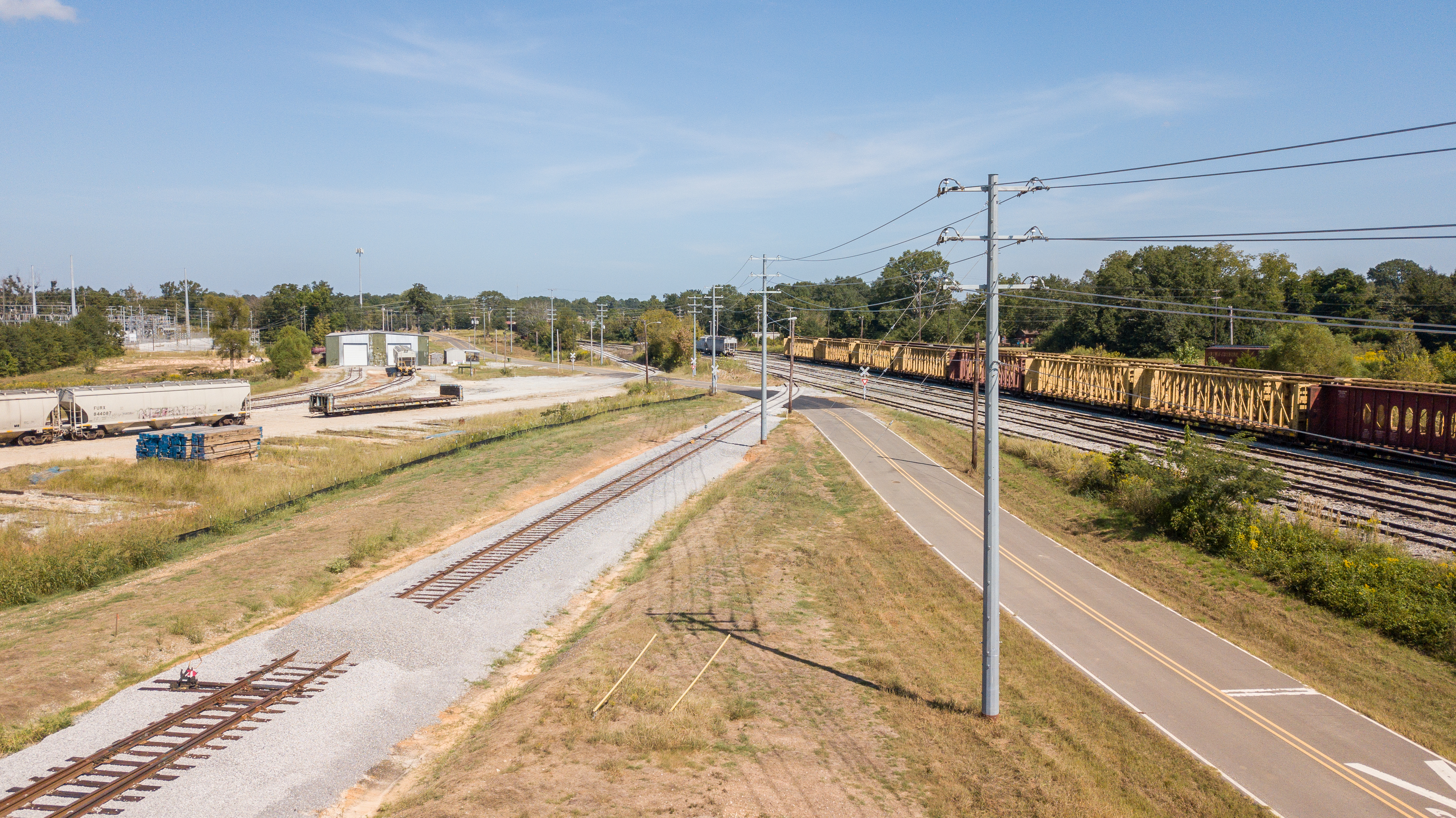

• Construction of 1.3 miles of 795.0 kCMIL ACSR 13 kV double circuit, power factor correction capacitor banks, primary metering, final connections to the Vance Street 13 kV substation, and final connections to the Winston Plywood 13 kV risers.
• Design Services included site surveys and mapping, planning, permitting, physical and electrical design, pole drilling details, phasing and final connections.
